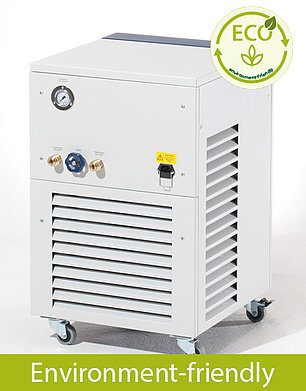

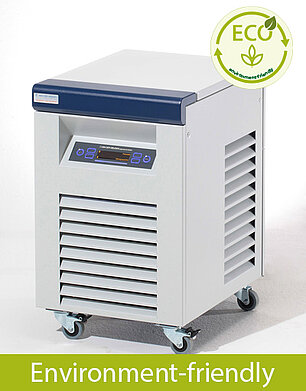

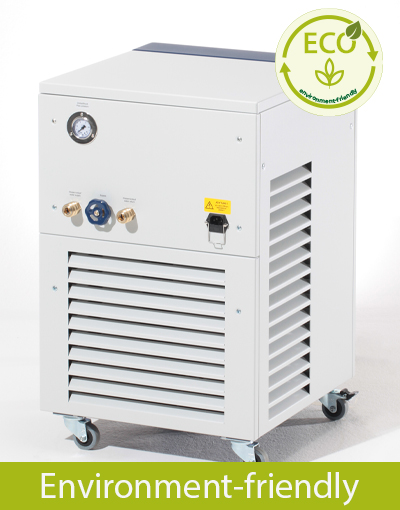

MINORE® - The compact chiller
Compact & economical with natural refrigerant R290
The MINORE® is a small and very compact recirculating chiller, which is available with an output of 300, 350 and 500 watts. A refrigeration unit cools the circulating water or refrigerant mixture in a small tank, from which it is extracted by a circulation pump and transported to the unit to be cooled. It is ideal for cooling rotary evaporators, Soxhlet extractions, water baths and distillation units.
The cooling water temperature is fully adjustable and is shown on the digital O-LED display. The output is regulated via a microprocessor-controlled counter-heater, which results in a high temperature constancy of the water inlet temperature (0.1 K).
The container is filled underneath the hinged lid on the top of the appliance and is easily accessible.
Due to its small size, our MINORE® is very space-saving and therefore fits on any laboratory bench. A practical feature is that it is on wheels and therefore mobile.
This appliance type is available in the same compact housing size, up to 600 watts and up to 3.5 bar pump pressure. Technical data can be found in the next category. These are the KÜHLMOBIL types 0000 and 0001.
We can also modify your devices for specific applications on request.
Application examples
- Rotary evaporators
- Distillation units
- Soxhlet extractions
- Water baths
Functions & advantages
- Tap water savings 100 % i.e. no tap water costs
- Cooling water temperature adjustable
- Consistent water quality, no limescale, no algae
- Minimal space requirement on every laboratory bench
- Constant water pressure
- almost noiseless
- Temperature indication via O-LED display
- Capacitive control panel
- Can be used variably
- on wheels
- Higher pump pressures also possible
- Power control via microprocessor-controlled counter-heating possible, thus high temperature constancy of the water supply temperature (0.1 K)
Technical data
| Technical data | MINORE® 0 | MINORE® I | MINORE® II |
|---|---|---|---|
| Article designation (air-cooled version) | MINORE® 0-A-RB400 | MINORE® I-A-RB400 | MINORE® II-A-RB400 |
| Articlenumber | 1-100856 | 1-100857 | 1-100858 |
| Article designation (water-cooled version) | MINORE® 0-W-RB400 | MINORE® I-W-RB400 | MINORE® II-W-RB400 |
| Articlenumber | 2-100271 | 2-100272 | 2-100273 |
| Temperature range | 16 - 22 °C | 16 - 22 °C | 16-22 °C |
| Cooling capacity @ 20 °C | 300 watts | 350 watts | 500 watts |
| Pump capacity max. | 28 l/min. | 28 l/min. | 28 l/min. |
| Max. delivery pressure | 0,4 bar | 0,4 bar | 0,4 bar |
| Connections | Quick couplings with 9 mm hose nozzles | Quick couplings with 9 mm hose nozzles | Quick couplings with 9 mm hose nozzles |
| Dimensions W x D x H | 360 x 470 x 590 mm | 360 x 470 x 590 mm | 360 x 470 x 590 mm |
| Power supply | 230 V/50 Hz/1 PH | 230 V/50 Hz/1 PH | 230 V/50 Hz/1 PH |
| Power consumption | 220 watts max. | 270 watts max. | 340 watts max. |
| Weight | 31 kg | 37 kg | 38 kg |
| Refrigerant | R290 | R290 | R290 |
