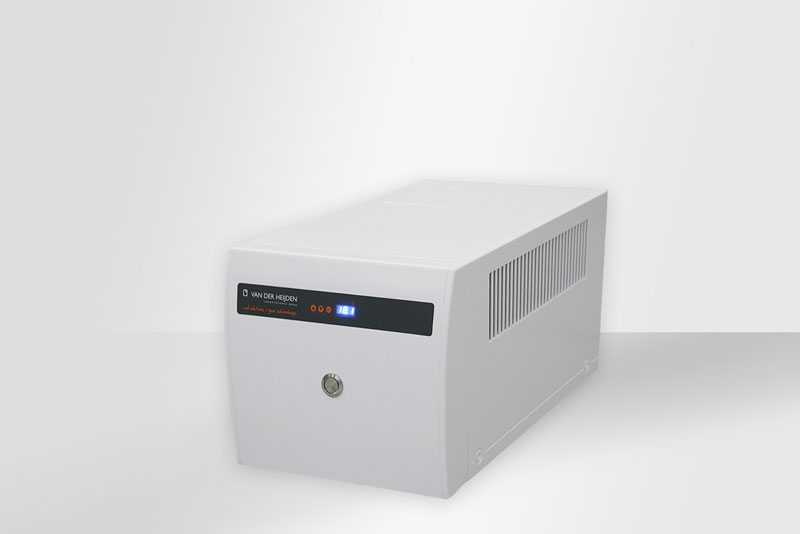

COOL-CARE® - Minimize cooling water consumption
Compact and economical - our smallest cooler
Van der Heijden - Labortechnik GmbH has designed the COOL-CARE® to minimize cooling water consumption in the areas of application mentioned.
The COOL-CARE® can be used without a controller to cool downstream condensers on diaphragm pumps.
The COOL-CARE® works on the principle of a circulation cooler. A cooling unit cools the circulating water or antifreeze mixture in a small plastic container, from which it is extracted by a circulation pump and transported to the unit to be cooled. The tank is filled at the top of the appliance and is easily accessible. The lid can be screwed on.
If it is not necessarily about saving water, but about high temperature constants in a certain temperature range, the COOL-CARE® is also available with a counter-heater.
A wear-free microprocessor control regulates a tank heater and ensures high accuracy of the water outlet temperature. A feed pump with a maximum feed pressure of up to 0.4 bar is possible
This device type is optionally available with a more powerful pump, a lower temperature range (down to 0 °C) and greater stability (± 0.2 °C). Talk to us!
We can also modify your devices for specific applications on request.
Application examples
- HPLC
- Electrophoresis
- Rotary evaporator
- Distillation devices
- Soxhlet extractions
- Water baths
- Cooling of micro requirements
Functions and advantages
- Tap water savings 100 % i.e. no tap water costs
- Cooling water temperature, pressure and flow rate are adjustable
- Consistent water quality, no limescale, no algae
- Minimal space requirement on every laboratory bench
- Compact 1.6 litre tank
- Extremely quiet
- Very easy handling
- Ambient temperature up to 28 °C
- optionally available with higher pump pressure and a lower temperature range
- Power control via microprocessor-controlled proportional control optionally possible, thus high temperature constancy of the water supply temperature (0.2 K/°C)
Technical data - COOL-CARE®
| Technical data | COOL-CARE® | COOL-CARE®-16 |
|---|---|---|
| Article description | COOL-CARE® | COOL-CARE®-16 |
| Article number | 1-100138 | 1-100153 |
| Temperature range | 5-25 °C | 5-25 °C |
| Cooling capacity @ 20 °C | 180 watts | 180 watts |
| Pump capacity max. | 10 l/min. | 28 l/min. |
| Delivery pressure max. | 0,15 bar | 0,4 bar |
| Connections | Quick couplings 9 mm | Quick couplings 9 mm |
| Dimensions W x D x H | 290 x 450 x 270 mm | 290 x 450 x 270 mm |
| Power supply | 230 V/50 Hz/1 PH | 230 V/50 Hz/1 PH |
| Power consumption | 140 watts max. | 160 watts max. |
| Weight | 15 kg | 15 kg |
| Refrigerant | R134a | R134a |
