KÜHLMOBIL 3.2 kW to 6 kW
The power pack for laboratories, X-ray generators, large water baths & more
These powerful chillers are available with an output of 3.2 kW to 6 kW. These cooler types are also mobile, plug-in units. The tank capacity is 100 litres to reduce the switching frequency per hour. The tanks are easy to fill as there are large filling openings on the top of each recirculating chiller. Screw-on lids with sealing rings seal off the waterside well. Evaporation is very low.
As the waste heat from these appliance sizes can be quite considerable (waste heat to the surrounding room results from cooling capacity plus approx. 40 %), these appliances are often installed outside, in plant rooms or even in large corridors. Amortization times are relatively short, as these KÜHLMOBIL saves considerable amounts of water per year.
The illustration shows the standard version with a manual bypass. Alternatively, an automatic bypass is possible, which opens when the unit to be cooled closes. There are always applications in which the water paths are shut off by solenoid valves.

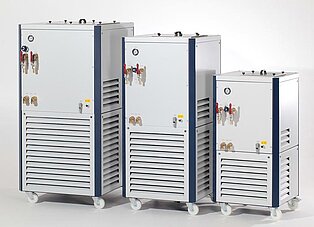

This appliance type can also be supplied as an air-cooled or water-cooled version. Other temperature ranges are also possible on request. You can find a wide range of options and accessories for these appliance types in our options and accessories list. Or simply let us advise you!
We can also modify your devices for specific applications on request.
Application examples
- Large water baths
- Packaging machine systems
- Spraying systems
- X-ray fluorescence spectrometryr
- X-ray generators
- Presses for moulding
- Cooling instruments
- Primary cooling
Functions & advantages
- Tap water savings 100 %
- No waste water costs
- Cooling water temperature, pressure and flow rate are adjustable
- Consistent water quality, no limescale, no algae
- Tank with 100 litre capacity to extend running times
- Temperature indication via O-LED display with capacitive control panel
- On wheels
- Audible and visual alarm
- Suitable for an ambient temperature of up to 32° C
- Higher pump pressures also possible as well as extensive options and accessories
- Capacity can be controlled by microprocessor proportional control, resulting in high temperature constancy of water supply temperature (0.1 K)
Technical data KÜHLMOBIL 3.2 to 4.3 kW
| Technical data | KÜHLMOBIL 3,2 kW | KÜHLMOBIL 3,9 kW | KÜHLMOBIL 4,3 kW |
|---|---|---|---|
| Article designation (air-cooled version) | 210-A-B400 | 221-A-B400 | 311-A-B400 |
| Article number | 1-100403 | 1-100462 | 1-100228 |
| Article designation (water-cooled version) | 210-W-B400 | 221-W-B400 | 311-W-B400 |
| Article number | 2-100286 | 2-100287 | 2-100288 |
| Temperature range | 16-22 °C | 16-22 °C | 16-22 °C |
| Cooling capacity @ 20 °C | 3200 watts | 3900 watts | 4300 watts |
| Pump capacity max. 4.5 bar Pump | 40 l/min. | 40 l/min. | 40 l/min. |
| Dimensions W x D x H |
680 x 730 x 1520 mm (A) 590 x 620 x 1205 mm (W) |
680 x 730 x 1520 mm (A) 590 x 620 x 1205 mm (W) |
680 x 730 x 1520 mm (A) 590 x 620 x 1205 mm (W) |
| Power supply | 400 V/50 Hz/3 PH | 400 V/50 Hz/3 PH | 400 V/50 Hz/3 PH |
| Weight | 175 kg | 181 kg | 183 kg |
| Refrigerant | R134a | R134a | R134a |
Technical data KÜHLMOBIL 5 to 6 kW
| Technical data | KÜHLMOBIL 5 kW | KÜHLMOBIL 5,4 kW | KÜHLMOBIL 6 kW |
|---|---|---|---|
| Article designation (air-cooled version) | 312-A-B400 | 313-A-B400 | 322-A-B400 |
| Article number | 1-100021 | 1-100287 | 1-100023 |
| Article designation (water-cooled version) | 312-W-B400 | 313-W-B400 | 322-W-B400 |
| Article number | 2-100289 | 2-100290 | 2-100291 |
| Temperature range | 16-22 °C | 16-22 °C | 16-22 °C |
| Cooling capacity @ 20 °C | 5000 watts | 5400 watts | 6000 watts |

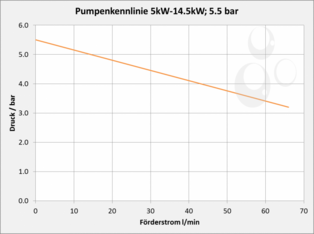

| Pump capacity max. 5.5bar Pumpe | 66 l/min. | 66 l/min. | 66 l/min. |
| Dimensions W x D x H | 680 x 730 x 1520 mm | 680 x 730 x 1520 mm | 680 x 730 x 1520 mm |
| Power supply | 400 V/50 Hz/3 PH | 400 V/50 Hz/3 PH | 400 V/50 Hz/3 PH |
| Weight | 189 kg | 191 kg | 199 kg |
| Refrigerant | R134a | R134a | R449A |
